Product Description — Excavator Teledipper
What is an excavator telescopic arm?
Excavator telescopic arm dipper stick is a specialized attachment
designed to extend the machine's reach. Comprising multiple
extendable sections that can move independently, clamshell
telescopic arm excavator enables the excavator to operate
effectively in difficult areas and perform tasks at various heights
and depths.
What are your advantages of telescopic clamshell excavator?
Here are the advantages of Kaiping Zhonghe Machinery's telescopic
boom arm:
Telescopic dipper for excavator is crafted from BS900E and Q690D
materials, ensuring it is both lightweight and durable.
To enhance durability, telescopic dipper for excavator has a wall
thickness of 6mm. It operates efficiently with nylon sliders and
steel pulleys, along with centralized lubrication for all hoses.
An external hose pulley on the bucket cylinder makes extendable
boom excavator easier to replace and service hoses.
The use of an external pulley to separate hoses from the main rope
reduces friction and minimizes the risk of damage.
Safety is enhanced with a dual-rope system, preventing extension if
the main rope fails.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Some specifications of one set of telescopic excavator:
Excavator (ton) | Max Depth
(mm) | Effective Length
(mm) | Bucket Capacity (cbm) |
| 6-10 | 10000 | 7600 | 0.2-0.3 |
| 11-15 | 14000 | 10500 | 0.4-0.6 |
| 20-30 | 16000 | 12500 | 0.8-1.5 |
| 30-35 | 20000 | 15500 | 1.3-1.66 |
| 30-35 | 25000 | 20500 | 1-1.4 |
| 40-45 | 25000 | 20500 | 1.8-2.5 |
| 40-45 | 30000 | 25100 | 1.4-2 |
Some installation instructions for one set of telescopic dipper arm
are as follow:

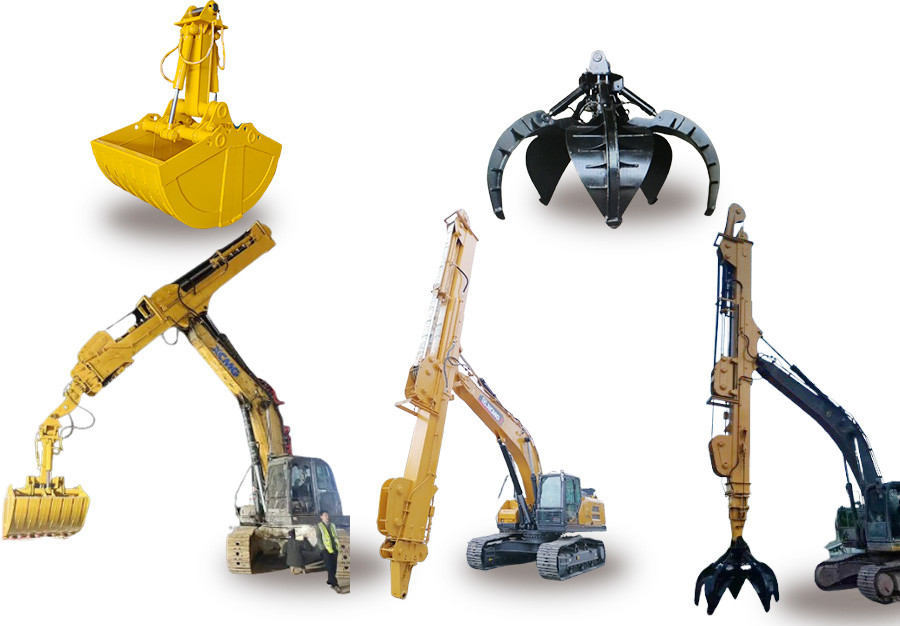

Our designs allow for the flexible interchangeability of digging buckets and grab buckets.
The clamshell bucket is mainly used for deep excavation tasks, particularly in subway construction projects.
On the other hand, the grab bucket is built with enhanced strength, making it effective for grasping stones.
Finally, the standard bucket is tailored specifically for the excavator teledipper,
incorporating special modifications to fulfill operational
requirements.
Welcome to send your requirements to us. Suitable recommendation
will be sent soon.

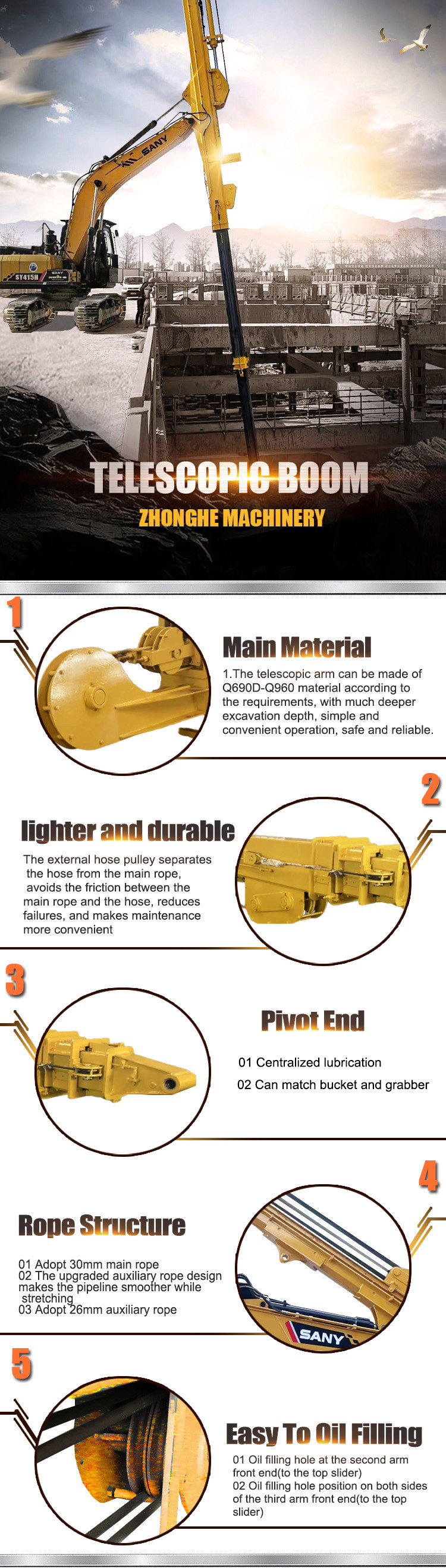

Telescopic Dipper for Excavator's Detail Display:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Kaiping Zhonghe Machinery 's Excavator Clamshell Telescopic Boom
Examples:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Some production details of one set of excavator telescopic boom
arm:
What is the purpose of beveling the long boom arm plate?
Most welding machines in the industry generally achieve a
penetration depth of only 3mm. Since our long reach arm long reach
boom has a thickness of at least 8mm, not beveling the edges would
hinder the welder's ability to fully penetrate the joint. This
could result in weak welds, raising the likelihood of weld cracking
in the future.
We employ mechanical beveling, in contrast to many other factories
that rely on manual beveling (as shown in the figure).
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Proceeded by Double-sided Boring Lathe--High Precision Machine
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About the Profile of Kaiping Zhonghe Machinery Company:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping Pictures of Our Products
